Web interface

Local instance

To build your own instance of web application do following:

  1. Instal Java 21 (JRE or JDK).

  2. Download source code from https://github.com/genespace-ru/workflow-engine.

  3. Build workflow-engine:

mvn package -DskipTests

  1. Launch workflow-engine web edition with next command:

mvn jetty:run -Djetty.http.port=9998 -Dmaven.javadoc.skip=true -DskipTests=true

  1. Use your browser to open http://localhost:9998/

Existing web server

Open Web application in browser (workflow.genespace.ru). You will see interface.

interface

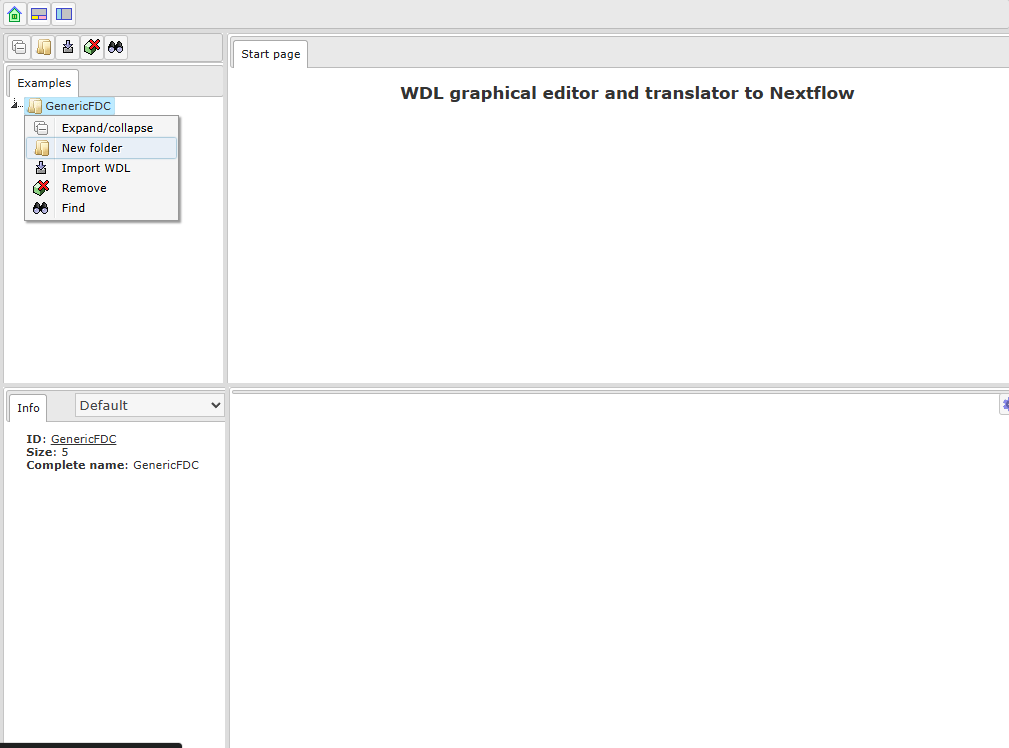

Right click on GenericFDC root folder and select New folder.

new_folder

In appeared dialog write name for you folder and press Ok.

new_folder_dialog

To import WDL to created folder right click on it and select Import WDL. In appeared window choose Computer and find appropriate file in your file system.

browse_file

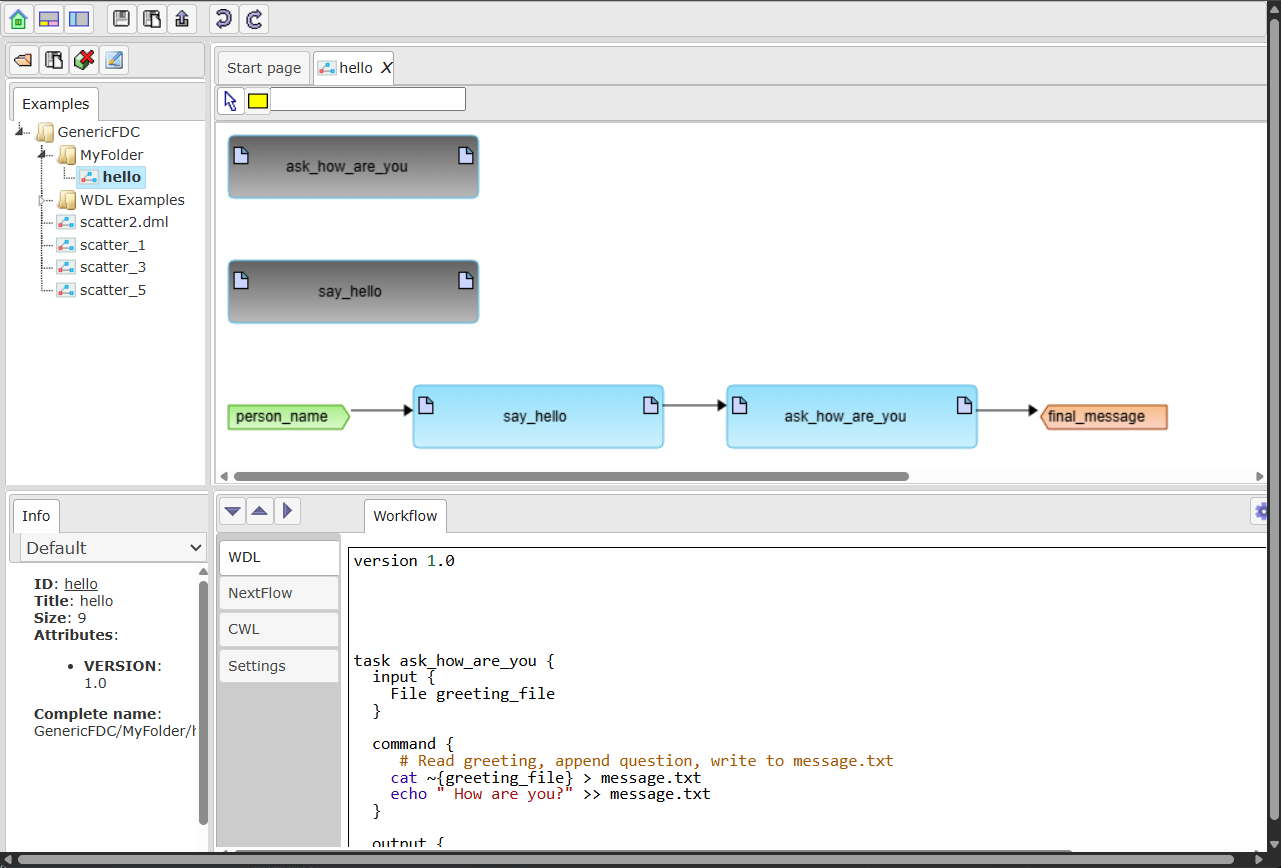

WDL script will be added to your folder and automatically open as visual diagram.

diagram

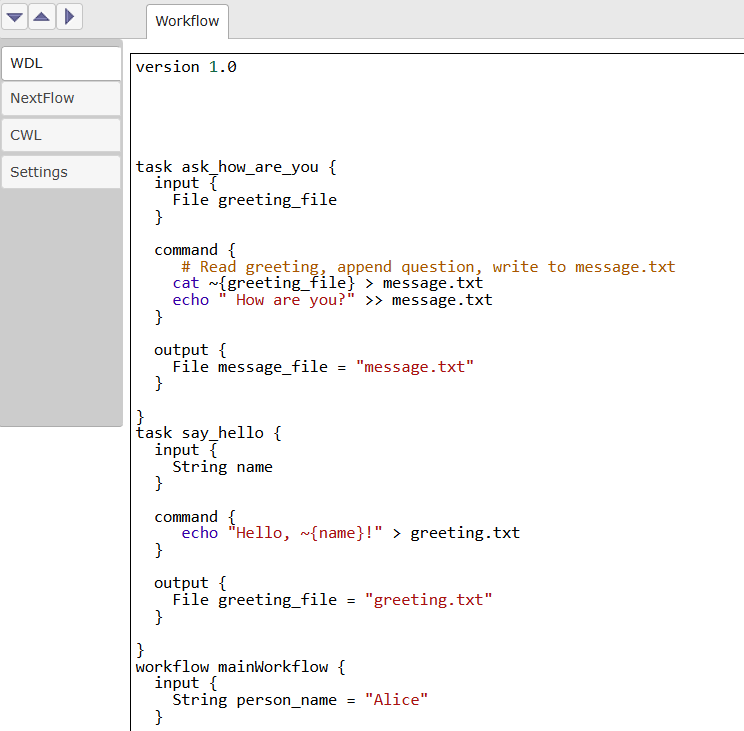

Go to the bottom panel, in WDL tab you will see WDl script. It may differ from your initial script as it is automatically generated from diagram (e.g. comments are not supported and will be removed. You can change WDL text and apply changes to diagram by clicking on apply-icon button.

wdl_tab

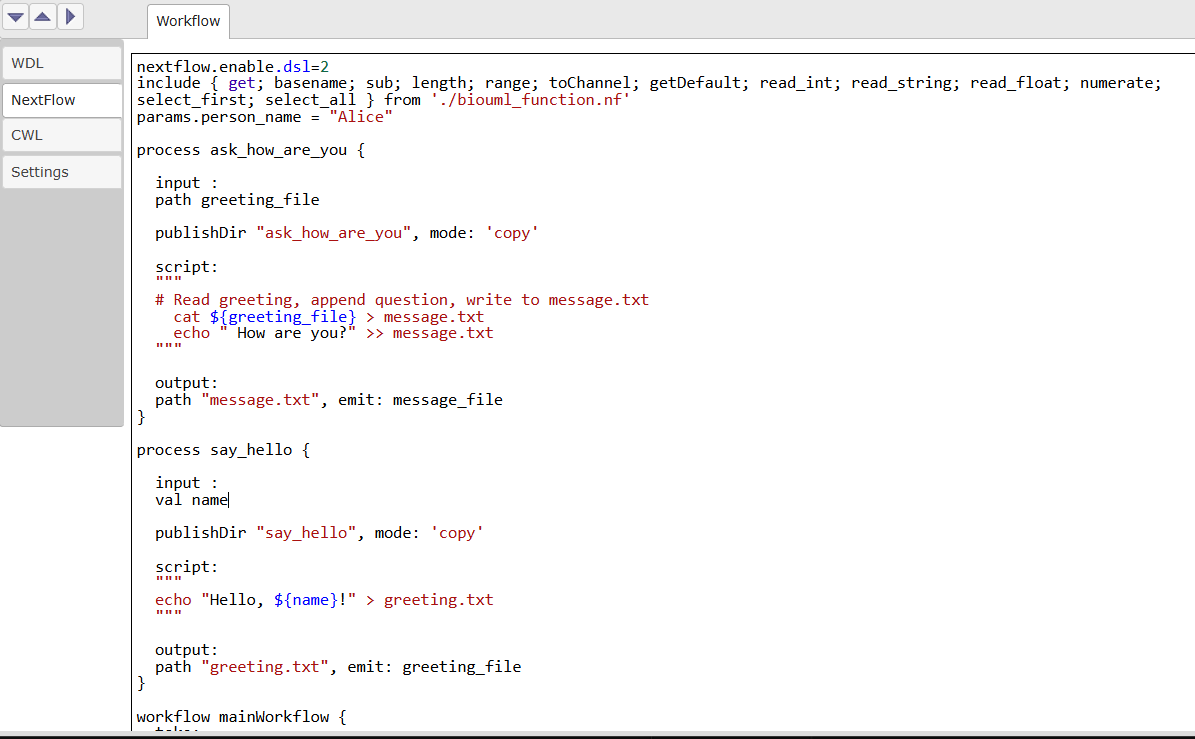

In Nextflow tab you will see autogenerated Nextflow.

nextflow_tab

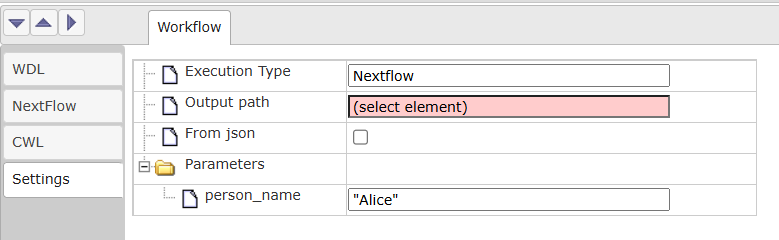

In the Settings tab you can set output folder and parameter values. Parameters may be set either manually for each individual parameter or by selecting the json file in the repository tree.

settings_tab

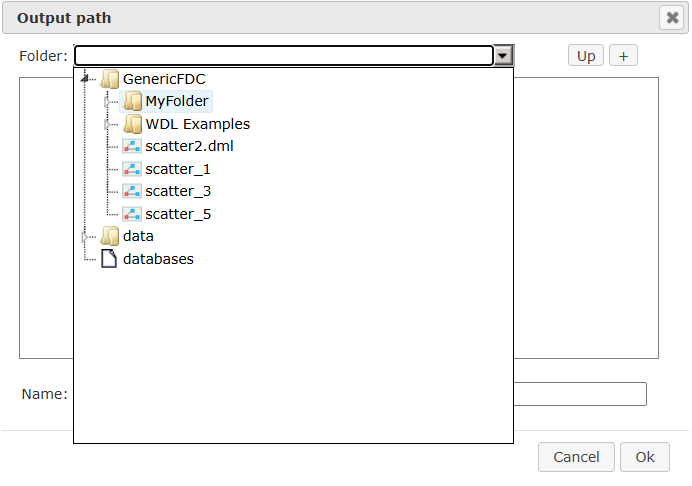

To set Output path by click on (select element), choose folder in repository tree and type results name (e.g. “Result”) in appeared window.

output_select output_select

To choose path for json file in repository check From json option and choose json file in repository tree.

json_select

Finally run nextflow by pressing run-icon button, after execution is finished, result will appear in output folder.
